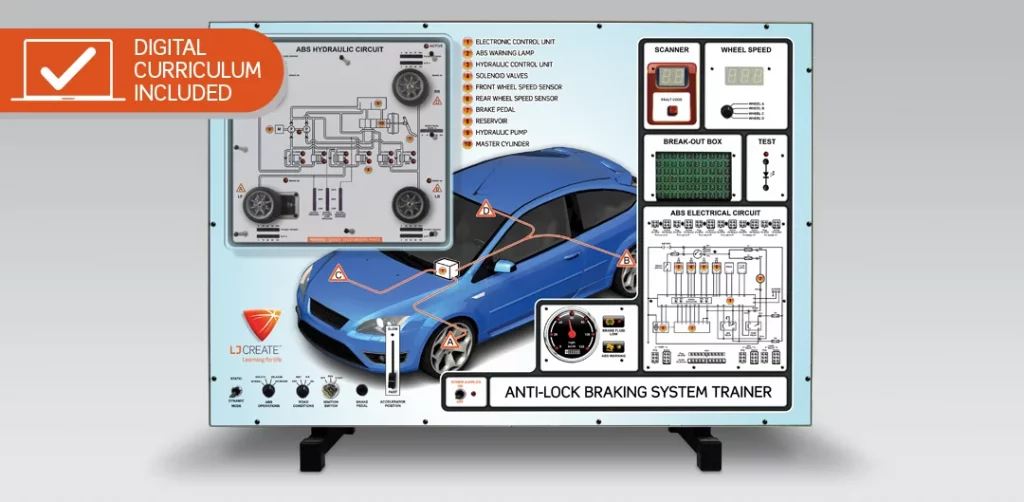

Anti-Lock Braking Systems Panel Trainer

#755-01

Recommended Skill Levels: High School, Technical College, University

Learning Topics: Automotive & Transportation

Product Types: Training Equipment

Back to Catalogue
Overview Learning Outcomes Product Details
Overview

The Anti-Lock Braking Systems (ABS) Panel Trainer (755-01) from LJCreate is a compact, desktop training system designed to teach the operation, components, and diagnostics of ABS systems commonly used in modern vehicles. Ideal for automotive technology programs, this trainer provides hands-on experience with simulated ABS fault conditions and allows students to practice troubleshooting and system analysis using scan tools and multimeters.

Add To My Products

Learning Outcomes

Using the ABS Panel Trainer, students will learn practical skills including:

  • Principles of braking systems and vehicle acceleration/deceleration
  • Test the operation of ABS sensors and switches
  • Effects of slip on wheel braking and vehicle stability
  • Basic concepts of an ABS system
  • Static operation of an ABS system, covering pressure isolation, pressure dump, and pressure normal
  • ABS wheel sensors
  • Electronic signals in an ABS system

And more!

Anti-Lock Braking Systems Panel Trainer Details

This automotive panel trainer includes:

  • Trainer
  • Curriculum in Digital Format
  • Wall Mounting Brackets
  • Bench Stands
  • Accelerator Pedal

This trainer requires:

  • Lab Scope
  • Digital Multimeter

Dimensions: 35.4″ W x 6.7″ D x 23.6″ H
