leXsolar

EMobility Ready-to-go: Battery Systems Kit

#1803

Recommended Skill Levels: High School

Learning Topics: Alternative/Green Energy

Product Types: Kit

Back to Catalogue
Overview Learning Outcomes Product Details
Overview

Help students explore the battery technologies and energy storage systems that power today’s electric vehicles and emerging transportation technologies.

The eMobility Ready-to-go kit (1803) from leXsolar is a portable training system that teaches battery technologies, energy storage, charging methods, and electric mobility concepts through hands-on experiments. Designed for STEM education, CTE programs, technical training, and workforce development initiatives, the system allows students to compare multiple energy storage technologies while investigating their performance characteristics and real-world applications.

Using battery modules, capacitors, a reversible fuel cell, charging equipment, and an electric vehicle model, students can analyze charging and discharging behavior, battery efficiency, internal resistance, capacity, and energy density. The included ChargerModule ensures all storage technologies are ready for experimentation while supporting investigations into modern battery charging strategies.

Add To My Products

Learning Outcomes

Using this battery technology and energy storage training system, students can develop knowledge and hands-on skills in:

  • Battery technologies
  • Energy storage systems
  • Battery capacity
  • Internal resistance
  • Battery efficiency
  • Energy density
  • Battery charging methods
  • Battery discharge characteristics
  • Series and parallel battery configurations
  • Electrical measurements
  • Capacitor energy storage
  • Fuel cell technology
  • Hydrogen energy systems
  • Electric vehicle operation
  • Energy conversion
  • Electric mobility technologies

Included Experiments

  • Student and instructor manuals include guided experiments covering:
  • Ohm’s Law
  • Series resistor circuits
  • Parallel resistor circuits
  • Voltage source characteristics
  • Four-terminal sensing
  • Internal resistance measurements
  • Series battery connections
  • Battery capacity analysis
  • Battery energy density
  • Battery efficiency
  • Lithium-polymer battery temperature effects
  • Capacitor charging
  • Capacitor discharging
  • NiMH battery I-V characteristics
  • NiZn battery I-V characteristics
  • LiFePO₄ battery I-V characteristics
  • Lead-acid battery I-V characteristics
  • Lithium-polymer battery I-V characteristics
  • Battery charging methods
  • Battery discharge behavior
  • Hydrogen production with a reversible fuel cell
  • Electrolyzer characteristics
  • Fuel cell operation
  • Fuel cell efficiency
  • Electric vehicle operation using multiple storage technologies

EMobility Ready-to-go: Battery Systems Kit Details

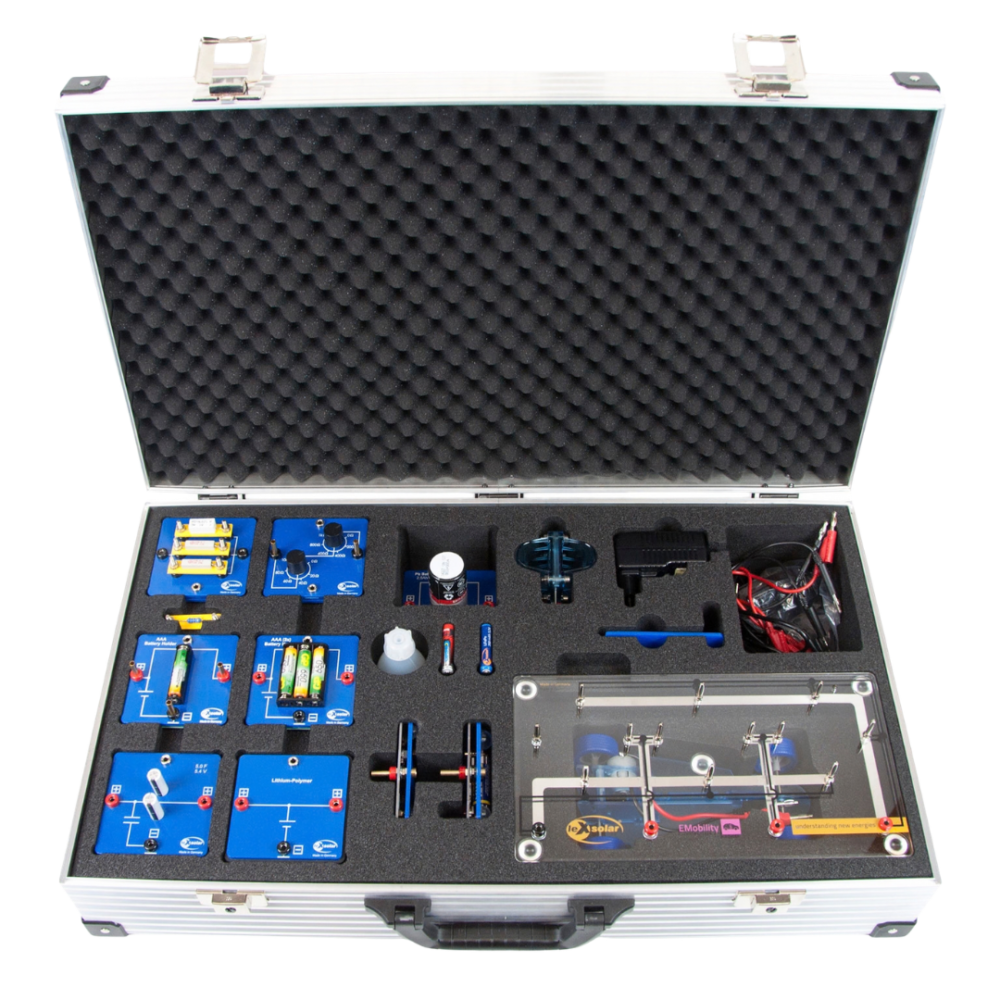

Training System Includes

  • NiMH battery modules
  • NiZn batteries
  • LiFePO₄ battery
  • Lithium-polymer (LiPo) battery module
  • Lead-acid battery module
  • Capacitor energy storage module
  • Reversible fuel cell
  • Electric model vehicle
  • ChargerModule
  • AV measurement module
  • EMobility base unit
  • Potentiometer module
  • Resistor modules and load components
  • Battery holder and battery adapter cable
  • Distilled water
  • Test leads and electrical accessories
  • Aluminum storage case
  • Student manual with guided experiments and lab activities
  • Instructor manual with experiment setup guidance and instructional support
  • Layout diagram and startup information sheet



Technical Specifications

  • Dimensions: 17.7″ W × 13.8″ D × 4.7″ H
  • Weight: 12.3 lbs.
  • Portable aluminum storage case included
  • ChargerModule
  • Supports NiMH, NiZn, LiFePO₄, LiPo, and lead-acid batteries
  • Supports capacitor charging
  • Supports electrolyzer charging
  • Fixed 3V and 6V outputs
  • AV Measurement Module
  • Voltage measurement range: 0–12 V
  • Current measurement range: 0–2 A
  • Graphics display with voltage and current measurement modes
