5-Axis CNC Mill

Learning Outcomes

Instructor Resources & Training

The LMH-300 5X supports advanced machining curricula, enabling students to learn multi-axis programming, complex part production, and robotic automation. Its combination of high-performance capabilities and intuitive controls ensures that students are prepared for real-world applications in industries such as aerospace, automotive, and medical manufacturing.

Student Curriculum & Certifications

Ask us about FANUC eLearn curriculum and how you can become a certified NOCTI testing site to deliver industry-recognized certifications to your students.

• Mastery of Multi-Axis Machining: Train students to perform simultaneous 5-axis operations, machining complex parts in a single setup.
• Industry-Standard CNC Programming: Hands-on experience with FANUC controls equips students with practical skills for professional manufacturing environments.
• Advanced Material Handling: Teach precision machining on a range of materials, from plastics to metals, with cutting feed rates of up to 250 IPM.
• Tool Management: Students gain experience managing workflows with a 27-tool automatic changer for efficient machining transitions.
• Automation Integration: Provide training in robotics by automating tasks with FANUC CRX-5iA or LR-Mate 400iD robots, preparing students for the future of smart manufacturing.

5-Axis CNC Mill Details

Precision Redefined in Advanced 5-Axis Milling

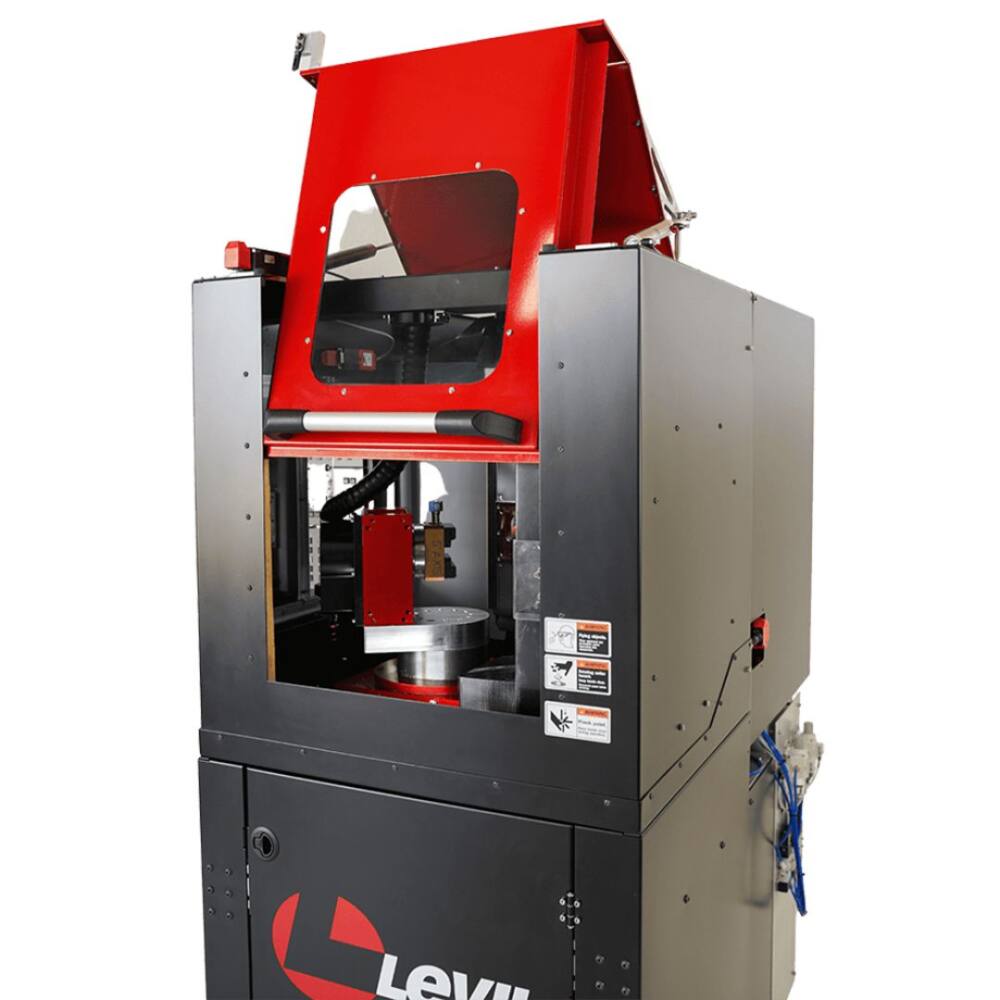

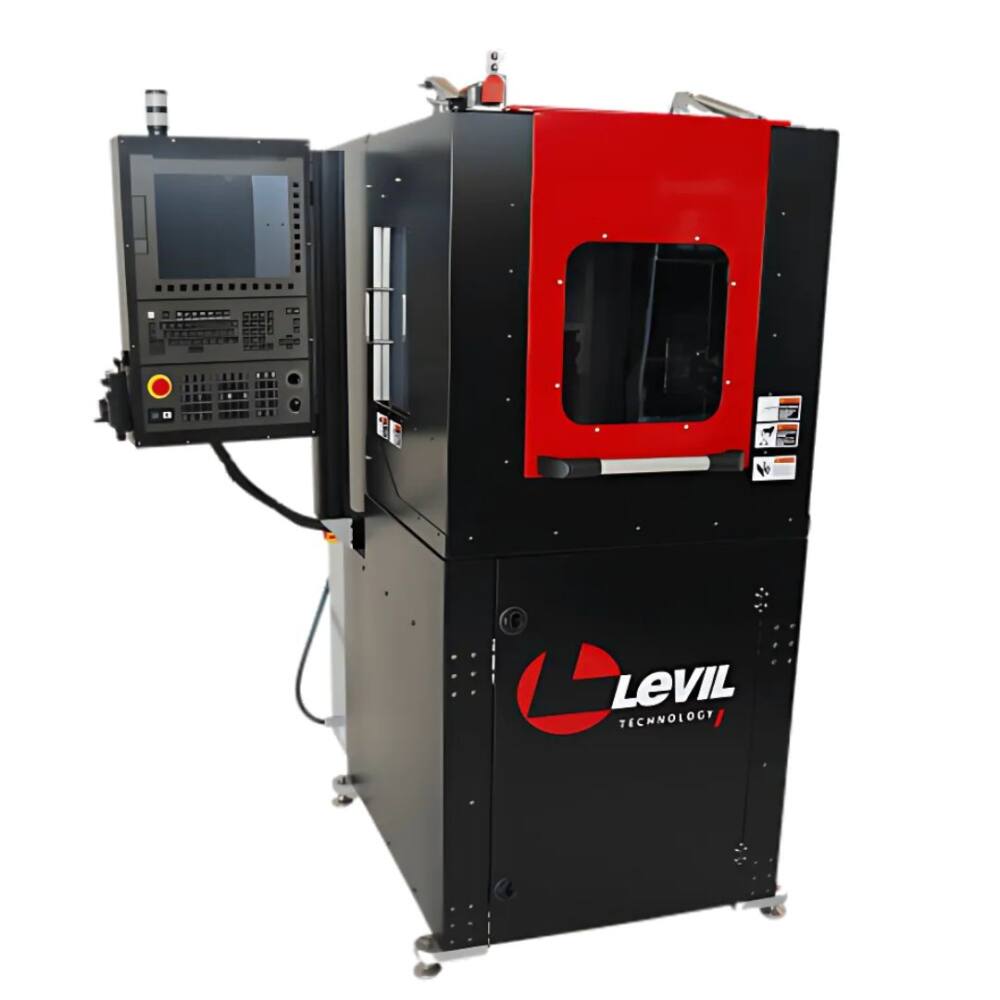

The Levil LMH-300 5-Axis CNC Mill sets a new standard in precision and versatility for multi-axis machining. Engineered for complex geometries and intricate part production, this cutting-edge machine features rotary B and C axes for simultaneous 5-axis operations. Its compact yet robust design makes it ideal for educational settings, research labs, and production facilities where precision and efficiency are critical.

Equipped with a liquid-cooled 20,000 RPM spindle, servo motors, and C5-grade precision ground ball screws, the LMH-300 ensures exceptional accuracy and repeatability across various materials. The 27-tool carousel automatic tool changer streamlines workflow, reducing setup time and increasing productivity. With FANUC or Levil controllers and conversational programming, this machine simplifies multi-axis operation, offering advanced capabilities with an intuitive interface.

The LMH-300 integrates seamlessly with FANUC CRX-5iA collaborative robots or LR-Mate 400iD robots for automated manufacturing, enhancing its functionality and providing students with hands-on experience in robotics and smart manufacturing. From prototyping to production, the LMH-300 delivers unmatched performance for advanced manufacturing applications.

LMH-300 5-Axis CNC Mill Features:

• Control System Options: FANUC 0i-MF Plus or Levil LV-12 MC
• Travel:
  • X Axis: 15.3 in. (390 mm)
  • Y Axis: 6.5 in. (170 mm)
  • Z Axis: 9.4 in. (240 mm)
  • B Axis: -95° to +110°
  • C Axis: +/- 360°
• Spindle:
  • Max Speed: 20,000 RPM
  • Motor Power: 2 HP
  • Torque: 2.29 Nm
  • Cooling: Liquid-cooled / Air-cooled
  • Drive System: Inline direct drive
  • Rigid Tapping Capable
• Feed Rates:
  • Rapid Feed: 600 IPM (15,000 mm/min)
  • Cutting Feed: 250 IPM (6,350 mm/min)
• Automatic Tool Changer:
  • Capacity: 27 tools
  • Max Tool Diameter: 1.1 in. (28 mm)
• Machine Dimensions:
  • Width: 58 in. (1.47 m)
  • Height: 75 in. (1.83 m)
  • Depth: 57.7 in. (1.465 m)
  • Weight: Approx. 1,000 lbs. (453 kg)
• Power Requirements: 220 VAC, 30 A, 3-phase
