Distributorless Ignition System Trainer

#765-01

Recommended Skill Levels: High School, Technical College, University

Learning Topics: Automotive & Transportation, Light Vehicles

Product Types: Training Equipment

Back to Catalogue
Overview Learning Outcomes Product Details
Overview

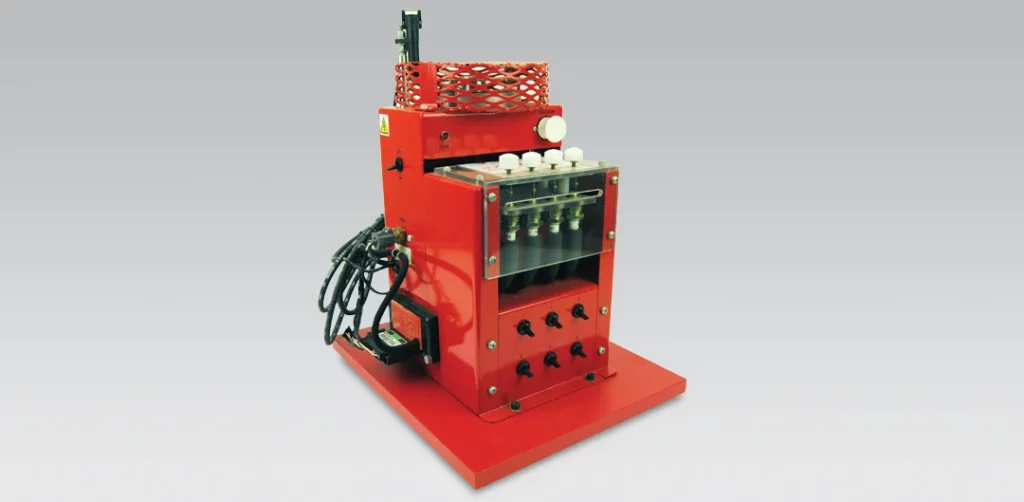

The Distributorless Ignition System Trainer (765-01) is a DC motor powered by either a 12V vehicle battery or a 12V bench PSU from LJCreate. The moving parts are fully guarded, and the unit is intrinsically safe for students to use. The resource also includes switchable faults for diagnostic demonstrations and fault finding.

Add To My Products

Learning Outcomes

Using this training syste,m students can explore concepts including:

  • Ignition system fundamentals
  • The ignition primary circuit
  • The ignition secondary circuit
  • Ignition coils
  • Distributors
  • Breakerless ignition systems
  • Spark plugs
  • Ignition system voltage wave patterns
  • Ignition system timing
  • Electronic ignition systems
  • Electronic ignition systems service & diagnosis

Distributorless Ignition System Trainer Details

This ignition systems trainer includes:

  • Trainer
  • Power Supply Unit 12 V 30 A
  • Accessory Kit

Trainer Dimensions (W x D x H): 400 x 310 x 470 mm / 16 x 12 x 19 inches
