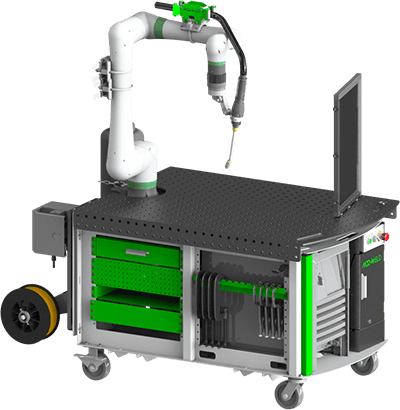

MOD-WELD with FANUC CRX

Learning Outcomes

Using the MOD-WELD, learners can gain hands-on experience in operating and programing an industrial-grade robotic welding system. Learners can develop skills in:

• Robotic Welding
• Programming
• Troubleshooting
• HMI
• Material Science
• Welding Automation
• Quality Control
• Welding Processes

MOD-WELD with FANUC CRX Details

The MOD-WELD system can be customized to your needs that always includes:

• Tablet Teach Pendent
• APT Clever Torch
• Lockable Teach Tablet Holder
• Miller Auto-Continuum 350 with torch and wire feed
• (1) 6-axis robot:
  • FANUC CRX – 10iA/L for ARC
  • FANUC CRX-10iA for ARC
  • FANUC ARC Mate 50iD
  • FANUC ARC Mate 100iD
• Auto-Continuum™ 350 Miller Power Source
• Fronius TPS/i Power Source
• Rockwell HMI Interface including:
  • 16 inputs
  • 16 outputs

This system allows for a variety of table options including:

• Fixed Table – enables operators to load parts into the fixture while the robot waits in a safe position for the safety door to close before welding
• Rotary Table – allows operator to load/unload from outside the weld cell
• Shuttle Table – load/unload by using the shuttle

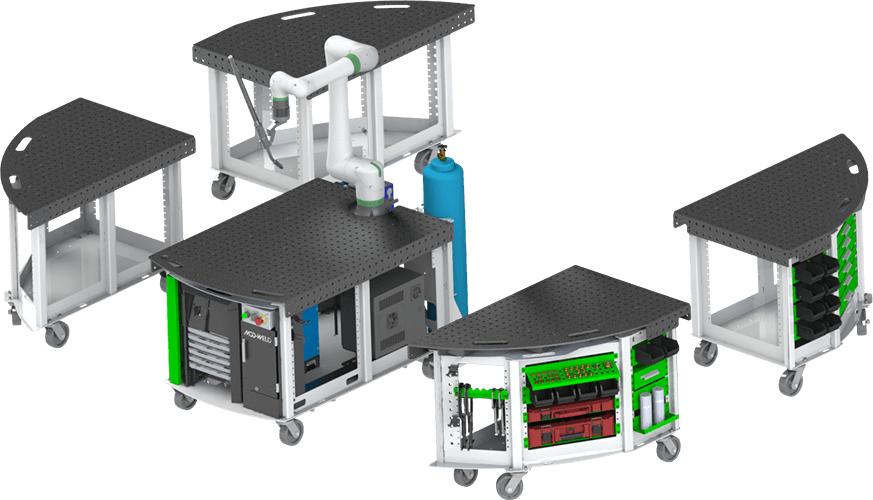

• CRX Table Configuration: up to 4 side carts

Dimensions

Footprint – 40”W x 78”D

Table Workspace – 40”W x 58-1/2”D
