PAM/TDM Communications

#320-55

Recommended Skill Levels: High School, Technical College, University

Learning Topics: Control Systems, Electrical Engineering, Electronics, Industrial Technology, STEM

Back to Catalogue
Overview Learning Outcomes Product Details
Overview

The PAM/TDM Communications Trainer (320-55) from LJ Create introduces students to real-world signal transmission using pulse amplitude modulation (PAM) and time division multiplexing (TDM).  This communications trainer enables students to explore two-channel PAM transmitter/receiver systems through hands-on experiments and a cloud-based curriculum. With intuitive controls and industry-relevant applications, this compact card is ideal for teaching modern communication methods in electronics programs. This card requires the Electornics Study Trainer (320-00) to function.

Add To My Products

Learning Outcomes

Students will explore the following key concepts:

  • Introduction to Pulse Amplitude Modulation
  • Sample Rate and PAM Frequency Content
  • Time Division Multiplexing of PAM Signals
  • TDM Transmission – Clock and Synchronization

PAM/TDM Communications Details

This unit includes:

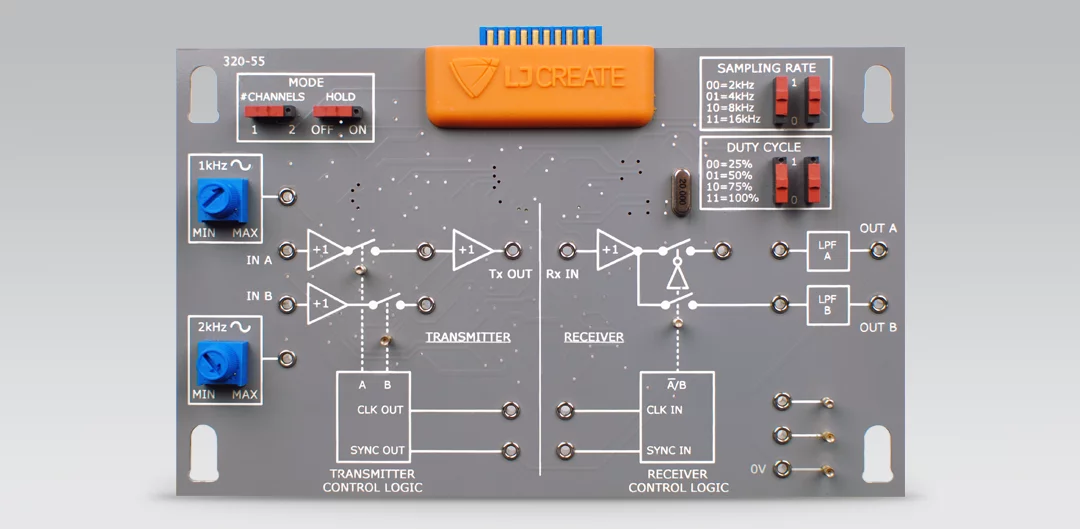

  • PAM/TDM Communications Circuit Card

This communications card requires:

  • Electronics Study Trainer (320-00)

  • Digital Multimeter

  • Dual Trace Oscilloscope

Dimensions: 160 x 100 x 35 mm
